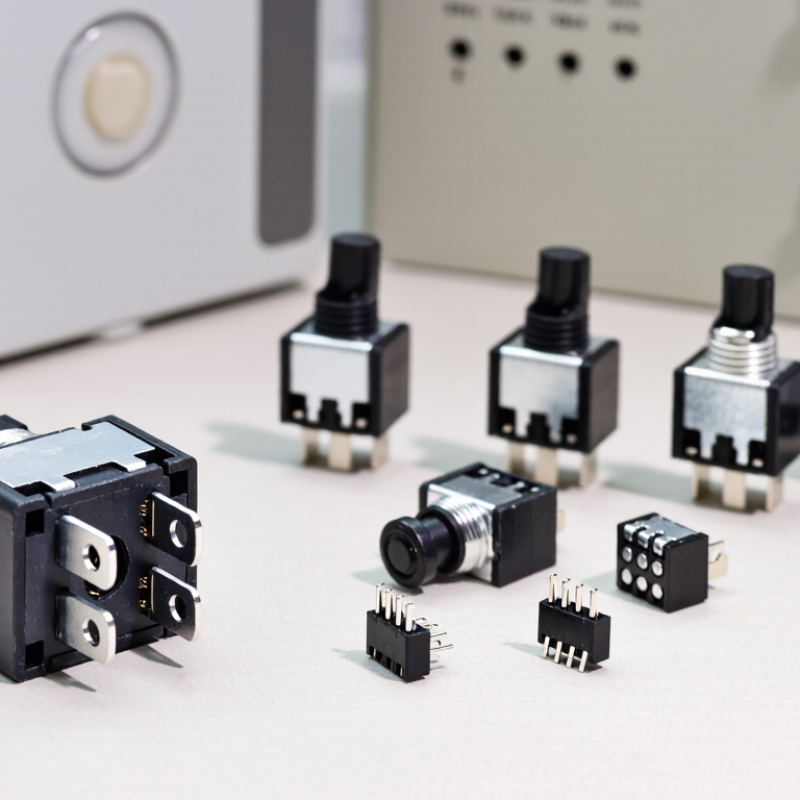

How to Choose the Right Micro Switch Button?

Choosing the right Micro Switch Button starts with understanding what the device must do. A compact switch beneath a control panel may need a different actuator and operating force than one used in a door sensor. Small details matter. The button should move smoothly, return reliably, and fit the available mounting space. A switch that looks suitable in a catalog can feel wrong once installed.

Compare the electrical rating with the real load, not just the headline number. Check the manufacturer’s datasheet for the applicable voltage, current, and load conditions. Then consider operating force, travel, contact configuration, terminal style, and expected cycle life. A clear click can help confirm actuation, but sound alone does not prove reliable electrical contact. Dust, moisture, vibration, and temperature may also affect performance, so review the stated environmental limits for the intended location.

Test it in context. A sample fitted to the actual panel can reveal awkward reach, excessive force, or unintended activation before full production. I have seen apparently minor differences in button height change how a control feels. That assumption deserves a second look. No single Micro Switch Button is right for every design; the best choice balances fit, operating feel, electrical requirements, and durability. Use verified specifications, and ask the supplier to clarify any rating or test condition that is unclear.

Table of Contents [Hide]

1 What Is a Micro Switch Button and How Does It Work?

2 How to Define the Requirements for Your Application

3 Which Electrical and Mechanical Specifications Should You Compare?

4 How to Match the Actuator and Mounting Style to Your Design

5 How to Check Environmental Ratings, Durability, and Safety

What Is a Micro Switch Button and How Does It Work?

A micro switch button is a small actuator paired with a snap-action electrical switch. Pressing the button moves an internal lever or plunger. A spring mechanism then changes the contacts quickly, even if the button moves slowly. That quick change helps create a clear on-or-off signal. The click is useful feedback, but it does not prove the circuit is working.

Inside, a common terminal connects to either the normally open or normally closed contact. At rest, the circuit follows the switch’s defined contact arrangement; pressing the actuator changes it. Check the datasheet, since terminal labels and operating details can vary. For example, a normally open circuit is usually open at rest and closes when actuated. Small parts, precise action.

When choosing a switch, match its electrical rating to the actual load, not just the device’s supply voltage. Also check operating force, travel, contact arrangement, and expected cycle life. A button may feel comfortable on a test bench yet become tiring in frequent use. Dust or moisture can also affect performance, so review the enclosure or sealing rating for the real environment. I would double-check the release point, too. It is easy to focus on the click and miss how the switch resets.

How to Define the Requirements for Your Application

How to Define the Requirements for Your Application

Start with the job the micro switch must perform. Does it detect a moving part, confirm a closed panel, or operate as a push button? Note the available space, mounting position, and actuator direction. A few millimeters can affect whether the lever reaches the target reliably. Record the required operating force and travel, too. The first specification is rarely perfect.

Next, define the electrical load. List the operating voltage and current, and identify whether the load is resistive or inductive. Motors and relays can create brief surges that exceed their normal running current. Check the switch’s electrical rating against the actual load, not just its nominal value. Estimate how many operations it will perform each day. A high cycle count changes the importance of mechanical life and contact durability.

Consider the conditions around the switch. Dust, moisture, vibration, and temperature can affect performance. Choose an appropriate protection level and confirm that the material suits the environment. Then test a sample in the real assembly. Measure actuation force and travel, and watch for missed signals or contact bounce. Test it early. It is easy to overlook tolerances on paper; a bracket that flexes slightly may shift the activation point. Recheck the requirements after testing, and revise anything that proved uncertain.

Which Electrical and Mechanical Specifications Should You Compare?

When choosing a micro switch button, compare its electrical ratings with the actual load, not just the largest number on the datasheet. Check rated voltage and current, and confirm whether the rating applies to AC or DC. A motor or solenoid can create a heavier switching demand than a simple resistive load. Inrush current matters. Also review contact resistance, insulation ratings, and specified electrical life. Test conditions differ, so ratings are not always directly comparable.

Mechanical specifications affect feel and reliability. Check operating force, operating position, pretravel, overtravel, and differential travel. A tight operating position may suit precise movement, while extra overtravel can help accommodate small assembly variations. Match the actuator style and body dimensions to the available space. Consider mounting method, expected cycle count, vibration, and dust exposure. Small details matter. A switch that feels right by hand may still wear quickly in a fast-moving mechanism.

Tips: Compare datasheets side by side, using the same load type and test conditions. Check the real load’s startup behavior, then allow a suitable safety margin. If the design is still changing, retest the chosen switch in the assembled product; assumptions about force or alignment can be wrong.

How to Match the Actuator and Mounting Style to Your Design

Match the actuator to the motion your design can reliably deliver. A pin plunger suits a direct, straight push with limited side movement. A lever or roller lever can pick up motion from a passing part, even when alignment is not exact. Check the required operating force and travel against the force and movement available in your mechanism. Small details matter.

Mounting style affects alignment, service access, and the space around the switch. Panel-mounted switches may suit an enclosure where the actuator needs to pass through a wall. PCB-mounted types can keep wiring compact, but the board must support the expected mechanical load. Verify hole spacing, body dimensions, and actuator clearance using a drawing or sample. A close fit on paper can still rub against a cover.

Test the switch in the actual assembly, not only on a workbench. Watch for the actuator being pressed too far, contacted at an angle, or held down by vibration. Measure the operating point and release point across repeated cycles. A prototype may reveal a mismatch that the CAD model missed. That is worth revisiting.

How to Choose the Right Micro Switch Button?

Match the actuator’s reach and motion to the mounting style and available space in your design.

The relative reach index is a qualitative design guide, not a standardized measurement or product specification. A plunger provides direct, short-travel actuation; levers extend the contact point, and longer levers generally provide greater reach. Choose a mounting style that keeps the switch secure and aligns the actuator with the moving part. Always confirm operating force, travel, overtravel, and mounting dimensions in the specific switch datasheet.

How to Check Environmental Ratings, Durability, and Safety

A micro switch beside a dusty conveyor needs different protection from one inside a sealed control panel. Check the complete IP code, not just “water-resistant” wording. IEC 60529 defines IP5X as dust-protected and IP6X as dust-tight; IPX4 covers water splashing, while IPX5 covers water jets. These ratings describe specific tests, not every real installation. A washdown area may involve hot water, detergent, or repeated pressure that the stated rating does not cover. Ask for the test conditions. Small detail, big difference.

Durability needs equally specific evidence. IEC 61058-1 provides safety and performance requirements for appliance switches, but it does not make every switch suitable for every load. Compare the stated electrical and mechanical endurance cycles at your actual voltage, current, and load type. A switch tested with a resistive load may wear differently on an inductive load. I would not choose by cycle count alone; the missing test conditions matter. For safety, verify rated voltage, current, temperature range, insulation details, and relevant certification for the finished equipment. Check clearances around the terminals, too. A tight enclosure can trap heat, and that is easy to overlook.

How to Choose the Right Micro Switch Button? — Check Environmental Ratings, Durability, and Safety

Selection Dimension	What to Check	Useful Rating or Example	How to Evaluate It
Ingress protection	Look for an IP code tested to IEC 60529, and confirm whether it applies to the switch alone or to the complete installed assembly.	IP54: dust-protected and protected against water splashes. IP65: dust-tight and protected against water jets. IP67: dust-tight and protected against temporary immersion under specified test conditions.	Choose a rating suited to the actual exposure. Check the test conditions and installation details; a panel seal or actuator boot may be necessary.
Operating environment	Check the manufacturer’s stated operating and storage temperature ranges, plus any humidity, condensation, chemical, or vibration limits.	Temperature limits vary by model; ranges such as −25°C to +85°C appear on some switch datasheets but are not universal.	Compare the full expected environment—including startup, shutdown, and storage conditions—with the exact model’s datasheet.
Mechanical endurance	Find the mechanical operating-life figure and the test conditions, such as operating speed and travel.	Datasheets may state figures such as 1 million, 5 million, or 10 million mechanical operations. These are model-specific test ratings, not guaranteed life in every application.	Estimate the required cycles over the product’s service life. Confirm that the test conditions and actuator movement match your design.
Electrical endurance	Check the electrical-life rating separately from mechanical endurance, including voltage, current, power factor, and load type.	Electrical life can be lower than mechanical life. A rating for a resistive load does not automatically apply to a motor, lamp, solenoid, or capacitive load.	Match the rating to the real switched load. For inductive or inrush-heavy loads, seek a rating specifically covering that load or obtain application testing.
Current and voltage rating	Verify rated voltage and current for the relevant AC or DC circuit, switching mode, and terminal configuration.	A printed current value is not sufficient by itself; permitted values can differ between AC and DC and between load types.	Use the exact electrical rating table. Do not exceed the applicable rating, and account for startup current and switching frequency.
Actuator and button fit	Check actuator style, operating force, pre-travel, movement, differential travel, and overtravel limits.	Dimensions and forces are model-specific; the actuator must reach the operating point without being forced past its allowed travel.	Confirm the switch fits the panel and mechanism, and that the button reliably operates it without side loading or excessive force.
Contact arrangement	Identify the terminal and contact configuration required by the circuit.	Common arrangements include SPST and SPDT; terminals may be normally open (NO), normally closed (NC), or common (COM).	Check the datasheet’s wiring diagram and switching sequence. Do not rely on terminal position or color alone.
Electrical insulation and spacing	Review insulation, dielectric withstand, creepage, and clearance specifications for the intended circuit.	Required spacing depends on factors such as working voltage, pollution degree, insulation material, and the applicable product standard.	Use the values and conditions specified for the exact switch and end product; do not infer safe spacing from the switch’s size.
Approvals and compliance	Check applicable safety approvals and the exact model or part number covered by each approval.	IEC 61058-1 is a standard for switches for appliances; other requirements depend on the product, market, and application.	Verify current certificates and conditions of acceptability in the relevant certification database. Component approval does not automatically certify the finished product.
Installation and maintenance	Review terminal type, wire size, mounting method, sealing requirements, and access for inspection or replacement.	Terminal torque, conductor limits, and mounting instructions are specified by the manufacturer for each model.	Follow the installation instructions and inspect the assembly for loose connections, damaged seals, or unintended actuator obstruction.

Selection tip: Compare the exact switch model’s datasheet with the real operating environment and load. IP, endurance, and approval claims depend on test conditions and installation; no single rating guarantees suitability for every application.
