We always stick to the principle "Quality First, Prestige Supreme". We are fully committed to providing our clients with competitively priced quality products, prompt delivery and professional service for Micro Pressure Switch , Pcb Mount Push Button Switch , 3 Way Rocker Switch 12v , We are looking forward to cooperating with all customers from at home and abroad. Moreover, customer satisfaction is our eternal pursuit.
China Wholesale Micro Switch With Roller Pricelist - HK-14-1-16A-108 – Tongda Detail:

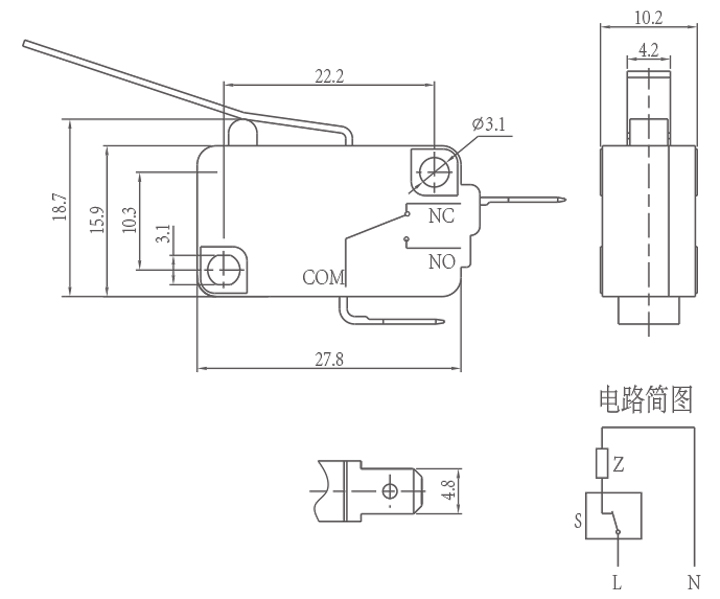

Size chart

HK-14-1-16A-108(2)

Switch action Characteristics

The defining characteristics of operation Operating Parameter Value Units
Free Position FP 15.9±0.2 mm
Operating Position OP 14.9±0.5 mm
Releasing Position RP 15.2±0.5 mm
Total travel Position 13.1 mm
Operating Force OF 0.25~4 N
Releasing Force RF — N
Total travel Force TTF — N
Pre Travel PT 0.5~1.6 mm
Over Travel OT 1.0Min mm
Movement Differential MD 0.4Max mm

Switch technical Characteristics

ITEM

technical parameter

Value

1

 Contact  Resistance ≤30mΩ Initial value

2

 Insulation Resistance ≥100MΩ500VDC

3

 Dielectric Voltage between non-connected terminals 1000V/0.5mA/60S
between terminals and the metal frame 3000V/0.5mA/60S

4

 Electrical Life ≥50000 cycles

5

 Mechanical Life ≥1000000 cycles

6

 Operating Temperature -25~125℃

7

 Operating Frequency electrical:15 cycles
Mechanical:60 cycles

8

 Vibration Proof Vibration Frequency:10~55HZ;
Amplitude:1.5mm;
Three directions:1H

9

 Solder Ability: More than 80% of immersed part shall be covered with solder Soldering Temperature:235±5℃
Immersing Time:2~3S

10

 Solder Heat Resistance Dip Soldering:260±5℃ 5±1S
Manual Soldering:300±5℃ 2~3S

11

 Safety Approvals UL,CSA,VDE,ENEC,TUV,CE,KC,CQC

12

 Test Conditions Ambient Temperature:20±5℃
Relative Humidity:65±5%RH
Air Pressure:86~106KPa

Switch application: widely used in various household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, power tools and other fields.
