China Wholesale Micro Switch With Lever Actuator Quotes - FSK-51-T-003 – Tongda Detail:

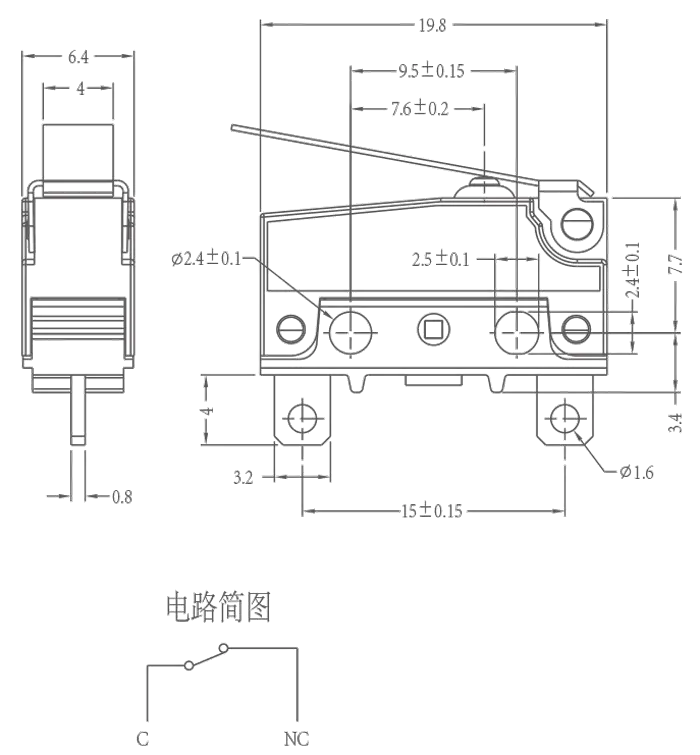

Size chart

FSK-51-T-003-

Switch technical Characteristics

ITEM）	（technical parameter）		（Value）
1	（Electrical Rating）		3(1)A 250VAC
2	(Operating Force)		1.2±0.5N
3	（Contact Resistance）		≤100mΩ
4	(Insulation Resistance)		≥100MΩ(500VDC)
5	（Dielectric Voltage）	（between non-connected terminals）	500V/0.5mA/60S
		(between terminals and the metal frame)	1500V/0.5mA/60S
6	(Electrical Life)		≥20000 cycles
7	(Mechanical Life)		≥100000 cycles
8	（Operating Temperature）		-25～105℃
9	（Operating Frequency）		（electrical）:15 cycles（Mechanical）:60 cycles
10	（Vibration Proof）		（Vibration Frequency）：10～55HZ；（Amplitude）：1.5mm;（Three directions）:1H
11	(Solder Ability)(More than 80% of immersed part shall be covered with solder)		(Soldering Temperature)：235±5℃(Immersing Time)：2～3S
12	（Solder Heat Resistance）		（Dip Soldering）：260±5℃ 5±1SManual Soldering）：300±5℃ 2～3S
13	（Test Conditions）		（Ambient Temperature）：20±5℃（Relative Humidity）：65±5%RH（Air Pressure）：86～106KPa
