China Wholesale Micro Switch Water Heater Pricelist - HK-14-1-16A-123 – Tongda Detail:

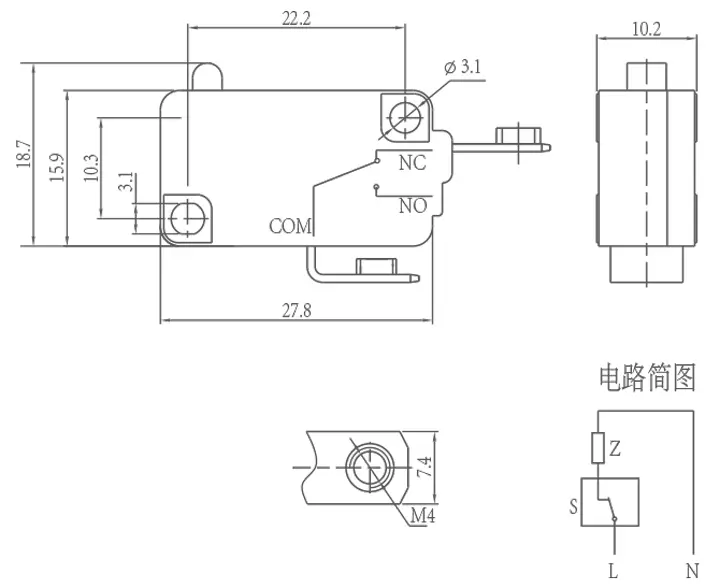

Size chart

HK-14-1-16A-123(2)

Switch action Characteristics

The defining characteristics of operation Operating Parameter Value Units
Free Position FP 15.9±0.2 mm
Operating Position OP 14.9±0.5 mm
Releasing Position RP 15.2±0.5 mm
Total travel Position 13.1 mm
Operating Force OF 0.25~4 N
Releasing Force RF — N
Total travel Force TTF — N
Pre Travel PT 0.5~1.6 mm
Over Travel OT 1.0Min mm
Movement Differential MD 0.4Max mm

Switch technical Characteristics

ITEM

technical parameter

Value

1

 Contact  Resistance ≤30mΩ Initial value

2

 Insulation Resistance ≥100MΩ500VDC

3

 Dielectric Voltage between non-connected terminals 1000V/0.5mA/60S
between terminals and the metal frame 3000V/0.5mA/60S

4

 Electrical Life ≥50000 cycles

5

 Mechanical Life ≥1000000 cycles

6

 Operating Temperature -25~125℃

7

 Operating Frequency electrical:15 cycles
Mechanical:60 cycles

8

 Vibration Proof Vibration Frequency:10~55HZ;
Amplitude:1.5mm;
Three directions:1H

9

 Solder Ability: More than 80% of immersed part shall be covered with solder Soldering Temperature:235±5℃
Immersing Time:2~3S

10

 Solder Heat Resistance Dip Soldering:260±5℃ 5±1S
Manual Soldering:300±5℃ 2~3S

11

 Safety Approvals UL,CSA,VDE,ENEC,TUV,CE,KC,CQC

12

 Test Conditions Ambient Temperature:20±5℃
Relative Humidity:65±5%RH
Air Pressure:86~106KPa

Switch application: widely used in various household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, power tools and other fields.
