China Wholesale Kw3 Oz Micro Switch Wholesale Suppliers - DK4-BZ-019 – Tongda Detail:

(The defining characteristics of operation)	(Operating Parameter)	(Abbreviation)	(Units)
	(Free Position)	FP	mm
	(Operating Position)	OP	mm
	(Releasing Position)	RP	mm
	(Total travel Position)	TTP	mm
	(Operating Force)	OF	N
	(Releasing Force)	RF	N
	(Total travel Force)	TTF	N
	(Pre Travel)	PT	mm
	(Over Travel)	OT	mm
	(Movement Differential)	MD	mm

Switch technical Characteristics

（ITEM）	（technical parameter）		（Value）
1	（Electrical Rating）		10(1.5)A 250VAC
2	（Contact Resistance）		≤50mΩ( Initial value)
3	(Insulation Resistance)		≥100MΩ(500VDC)
4	（Dielectric Voltage）	（between non-connected terminals）	500V/0.5mA/60S
		(between terminals and the metal frame)	1500V/0.5mA/60S
5	(Electrical Life)		≥10000 cycles
6	(Mechanical Life)		≥3000000 cycles
7	（Operating Temperature）		-25～105℃
8	（Operating Frequency）		（electrical）:15 cycles（Mechanical）:60 cycles
9	（Vibration Proof）		（Vibration Frequency）：10～55HZ；（Amplitude）：1.5mm; （Three directions）:1H
10	(Solder Ability): (More than 80% of immersed part shall be covered with solder)		(Soldering Temperature)：235±5℃(Immersing Time)：2～3S
11	（Solder Heat Resistance）		（Dip Soldering）：260±5℃ 5±1S（Manual Soldering）：300±5℃ 2～3S
12	（Safety Approvals）		UL、CSA、TUV、ENEC
13	（Test Conditions）		（Ambient Temperature）：20±5℃（Relative Humidity）：65±5%RH （Air Pressure）：86～106KPa

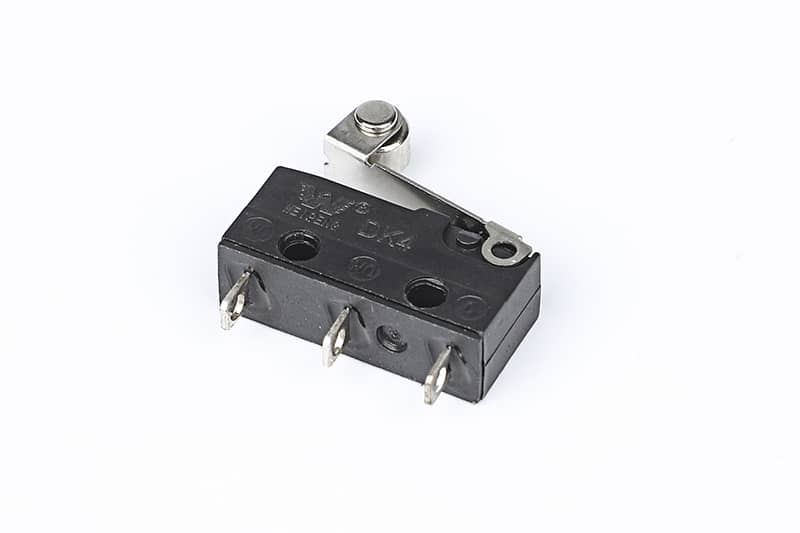

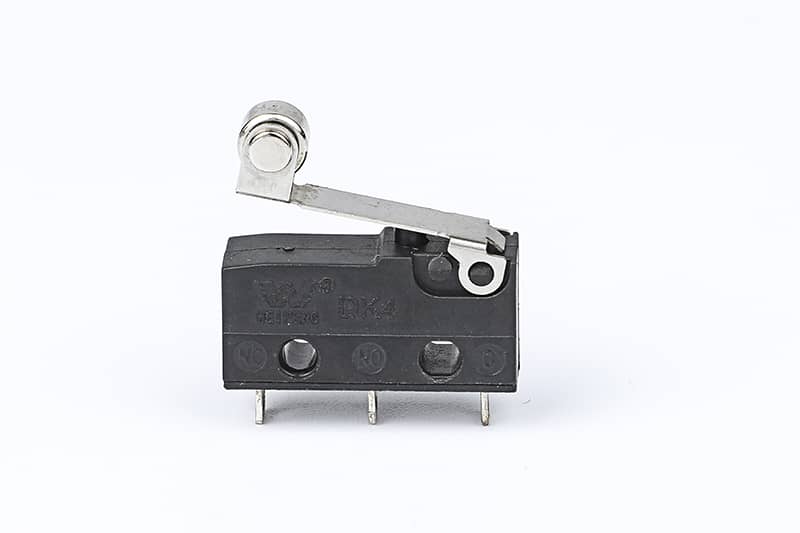

Product detail pictures:
