China Wholesale 16 Amp Micro Switch Quotes - HK-14-1X-16AP-806 – Tongda Detail:

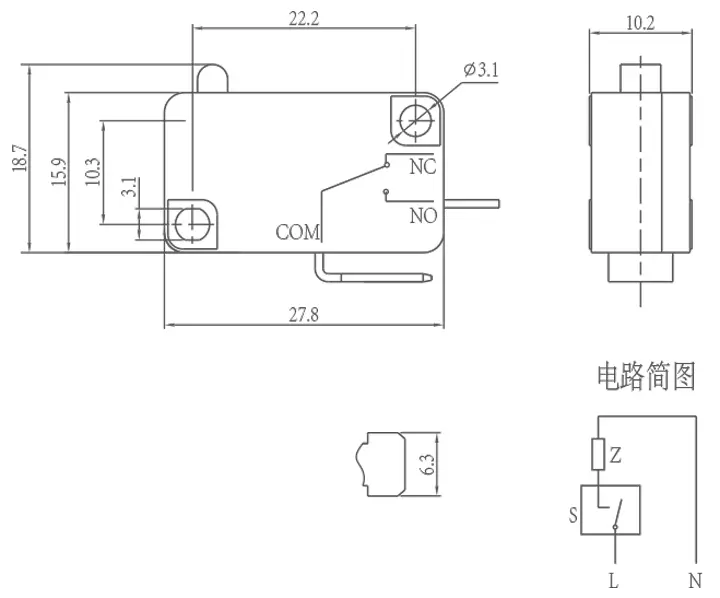

HK-14-1X-16AP-806(2)

The defining characteristics of operation	Operating Parameter	Value	Units
	Free Position FP	15.9±0.2	mm
	Operating Position OP	14.9±0.5	mm
	Releasing Position RP	15.2±0.5	mm
	Total travel Position	13.1	mm
	Operating Force OF	0.25~4	N
	Releasing Force RF	—	N
	Total travel Force TTF	—	N
	Pre Travel PT	0.5~1.6	mm
	Over Travel OT	1.0Min	mm
	Movement Differential MD	0.4Max	mm

Switch technical Characteristics

ITEM	technical parameter		Value
1	Contact Resistance		≤30mΩ Initial value
2	Insulation Resistance		≥100MΩ500VDC
3	Dielectric Voltage	between non-connected terminals	1000V/0.5mA/60S
		between terminals and the metal frame	3000V/0.5mA/60S
4	Electrical Life		≥50000 cycles
5	Mechanical Life		≥1000000 cycles
6	Operating Temperature		-25~125℃
7	Operating Frequency		electrical:15 cycles Mechanical:60 cycles
8	Vibration Proof		Vibration Frequency:10~55HZ; Amplitude:1.5mm; Three directions:1H
9	Solder Ability: More than 80% of immersed part shall be covered with solder		Soldering Temperature:235±5℃ Immersing Time:2~3S
10	Solder Heat Resistance		Dip Soldering:260±5℃ 5±1S Manual Soldering:300±5℃ 2~3S
11	Safety Approvals		UL,CSA,VDE,ENEC,TUV,CE,KC,CQC
12	Test Conditions		Ambient Temperature:20±5℃ Relative Humidity:65±5%RH Air Pressure:86~106KPa

Switch application: widely used in various household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, power tools and other fields.
