China Wholesale Snap Action Micro Switch Pricelist - FSK-20-009 – Tongda Detail:

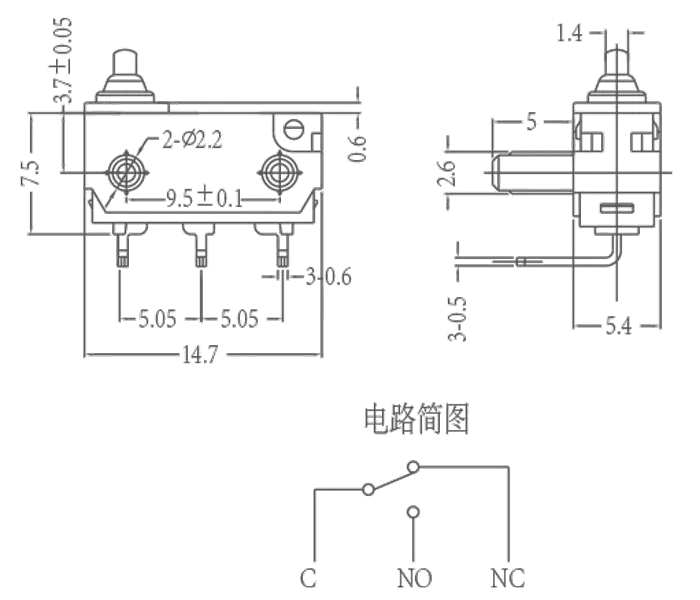

Size chart
Switch technical Characteristics
ITEM) |
(technical parameter) |
(Value) |
|
1 |
(Electrical Rating) |
0.1A 250VAC |
|
2 |
(Operating Force) |
1.0~2.5N |
|
3 |
(Contact Resistance) |
≤300mΩ |
|
4 |
(Insulation Resistance) |
≥100MΩ(500VDC) |
|
5 |
(Dielectric Voltage) |
(between non-connected terminals) |
500V/0.5mA/60S |
|
|
(between terminals and the metal frame) |
1500V/0.5mA/60S |
6 |
(Electrical Life) |
≥50000 cycles |
|
7 |
(Mechanical Life) |
≥100000 cycles |
|
8 |
(Operating Temperature) |
-25~105℃ |
|
9 |
(Operating Frequency) |
(electrical):15 cycles(Mechanical):60 cycles |
|
10 |
(Vibration Proof) |
(Vibration Frequency):10~55HZ;(Amplitude):1.5mm;(Three directions):1H |
|
11 |
(Solder Ability)(More than 80% of immersed part shall be covered with solder) |
(Soldering Temperature):235±5℃(Immersing Time):2~3S |
|
12 |
(Solder Heat Resistance) |
(Dip Soldering):260±5℃ 5±1SManual Soldering):300±5℃ 2~3S |
|
13 |
(Test Conditions) |
(Ambient Temperature):20±5℃(Relative Humidity):65±5%RH(Air Pressure):86~106KPa |
Product detail pictures:
