China Wholesale Micro Door Switch Quotes - DK4-BD-020 – Tongda Detail:

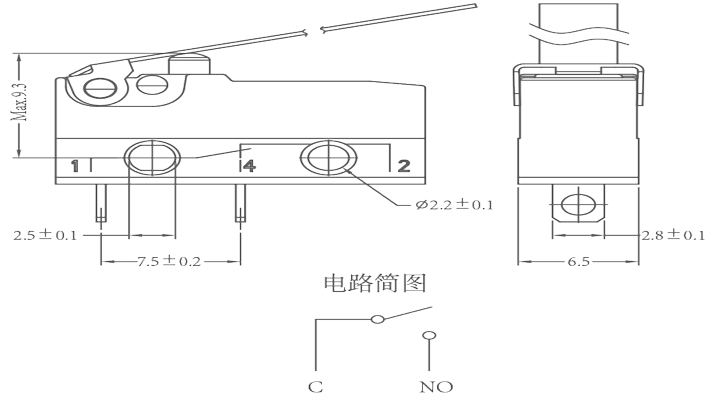

DK4-BD-020

(The defining characteristics of operation)

(Operating Parameter)

(Abbreviation)

 (Units)

 pdd

 (Free Position)

FP

mm
(Operating Position)

OP

mm
(Releasing Position)

RP

mm
(Total travel Position)

TTP

mm
(Operating Force)

OF

N
(Releasing Force)

RF

N
(Total travel Force)

TTF

N
(Pre Travel)

PT

mm
(Over Travel)

OT

mm
(Movement Differential)

MD

mm

Switch technical Characteristics

（ITEM）

（technical parameter）

（Value）

1

 （Electrical Rating） 10(1.5)A 250VAC

2

 （Contact  Resistance） ≤50mΩ( Initial value)

3

 (Insulation Resistance) ≥100MΩ(500VDC)

4

 （Dielectric Voltage） （between non-connected terminals） 500V/0.5mA/60S
(between terminals and the metal frame) 1500V/0.5mA/60S

5

 (Electrical Life) ≥10000 cycles

6

 (Mechanical Life) ≥3000000 cycles

7

 （Operating Temperature） -25～105℃

8

 （Operating Frequency） （electrical）:15 cycles（Mechanical）:60 cycles

9

 （Vibration Proof）

（Vibration Frequency）：10～55HZ；

（Amplitude）：1.5mm;

（Three directions）:1H

10

 (Solder Ability): (More than 80% of immersed part shall be covered with solder) (Soldering Temperature)：235±5℃(Immersing Time)：2～3S

11

 （Solder Heat Resistance） （Dip Soldering）：260±5℃ 5±1S（Manual Soldering）：300±5℃ 2～3S

12

 （Safety Approvals）

UL、CSA、TUV、ENEC

13

 （Test Conditions） （Ambient Temperature）：20±5℃（Relative Humidity）：65±5%RH

（Air Pressure）：86～106KPa
Product detail pictures:

China Wholesale Micro Door Switch Quotes - DK4-BD-020 – Tongda detail pictures
